The demo

One command runs every bundled example inside the Docker image and checks the results, leaving everything in a folder you can inspect. The examples are teaching inputs: real spectra cropped to acquisition windows, plus small synthetic fixtures for the routes the real data cannot exercise.

From the repository root, with Docker running:

bash tools/check_local_docker.sh docker_check_01

The first build downloads dependencies and compiles the Rust tools. The finished image runs the examples without network access, with 4 GiB RAM and two CPU slots per container. The build has separate resource needs. Install covers Apple Silicon emulation and downloading an already tested image.

Open these first

Path inside docker_check_01/	What it shows
campi/study/qc/QC_overview.png	Coverage and completeness for two measured CAMPI acquisition windows
campi/study/qc/Protein_intensity_violins.pdf	Positive group-intensity distributions, method and missingness
community/taxonomy/index.html	Interactive Unipept sunburst, treemap and tree using recorded public assignments
community/taxonomy/Holobiont_balance.pdf	Community context with counts and summed feature intensity
community/functions/protein_annotations.tsv	One real eggNOG enolase match and explicitly partial annotation coverage
campi/study/study_group_matrix.tsv	Sum quantities, with blanks for unquantified observations
campi_directlfq/study_group_matrix.tsv	directLFQ quantities for the same reporting groups
campi/study/peptide_evidence.tsv.gz	The accepted peptides behind each group
synthetic_analysis/sum/qc/PCA.png	Eligible PCA on an explicitly synthetic three-acquisition fixture
multiomics/workflow/samples/S01/molecular/gene_evidence.tsv	Why each molecular candidate was selected or excluded
functional/results/Functional_QC.png	Experimental functional coverage/diversity on a synthetic paired design

Each example writes a VALIDATION.json with its checks and scope. The parent folder also contains one log per example, such as campi.log and multiomics.log.

Every run gets a new folder

Existing output directories are refused, so earlier runs are never overwritten. Choose a new name such as docker_check_02 for the next run.

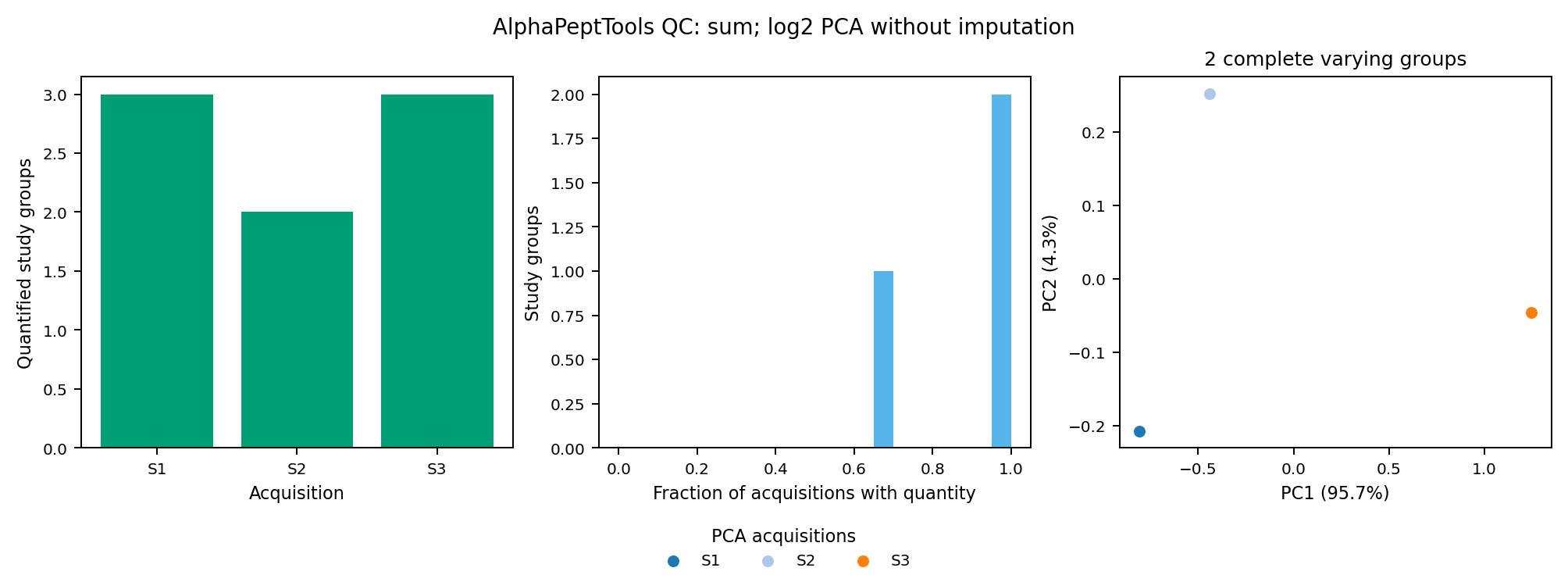

A generated report

This preview comes from the labelled synthetic example. It shows how coverage, missing observations and eligible PCA appear together. The measured CAMPI examples have their own reports. Preview provenance.

What runs

Example	Inputs	What the check verifies
Reference construction	Small synthetic proteins/predictions	Build a lake, retain source headers, extract evidence and select compact databases
CAMPI	Measured spectra and matching de novo predictions, cropped to acquisition windows	Rust selection → Sage → study groups → sum and QC
directLFQ	Accepted CAMPI quantitative features	Quantify fixed groups and preserve acquisition identity/missing observations
PCA	Explicitly synthetic three-acquisition data	Sum and directLFQ PCA, with a missing observation excluded from the complete core
Multi-omics	Real CAMPI sequences/spectra with synthetic DNA/RNA/compound values	Prepare sources, record missing genes, preserve de novo targets, add candidates, search and quantify
Chunked laptop mode	Both measured teaching datasets	Identical selected FASTAs and study quantities with reference pieces; resource plan recorded
Search choices	Measured CAMPI windows	All six closed/open × tryptic/semi-tryptic/unspecific combinations; bounded 7–15-aa teaching searches (the container check passes --search-max-length 15; the example's default is 30)
Community and evidence	Recorded native public CAMPI Unipept results and one real eggNOG annotation	Conserved counts/intensity, offline plots, full peptide–protein export and exact annotation join
Experimental function	Synthetic annotated profiles and paired metadata	Signal conservation, coverage, diversity, CLR PCA and within-donor permutations
Installation/output checks	Local fixtures	Executable availability, optional annotation wiring, offline resource menu and refusal to overwrite results

Why PCA comes from a synthetic fixture

The two measured CAMPI acquisitions do not meet the minimum of three for PCA. They receive QC and an explicit PCA exclusion. The separately labelled synthetic fixture exercises PCA; it is not extra biological data.

Optional external resources

Normal demo execution does not download protein catalogues, eggNOG databases or model weights. The resource helper shows their sizes and downloads only the resource you choose to your local directory.

Real eggNOG and optional ESM-C need those external resources and their configured tools. The offline demo checks annotation wiring with an explicit synthetic mapper fixture; actual model/database execution has separate component acceptance records. See annotation setup to run it on selected proteins.

Move from the demo to your study

Follow Your first study to replace the example inputs with an acquisition manifest and your prepared reference. Add matched DNA/RNA only when available, choose sum or directLFQ, and inspect the resulting QC.

The teaching inputs establish execution and accounting. For full acquisitions, use the compute guide, which records the large-reference RAM, time and disk scope separately. Molecular performance evidence and scientific interpretation are described in the benchmark guide.
