Explore community taxonomy#

FastaLake reuses Unipept's own taxonomy assignments and visualization library. After searching and grouping, open an interactive sunburst, treemap or taxonomy tree. Switch between distinct accepted peptides and summed LFQ-feature intensity; the report keeps unresolved evidence visible in both views.

The Docker demo includes recorded public CAMPI results. Open community/taxonomy/index.html in a current browser. It works offline, supports zoom and hover, and exports SVG/PNG figures with citations and reference labels. Holobiont_balance.pdf is the companion figure for sharing or a manuscript.

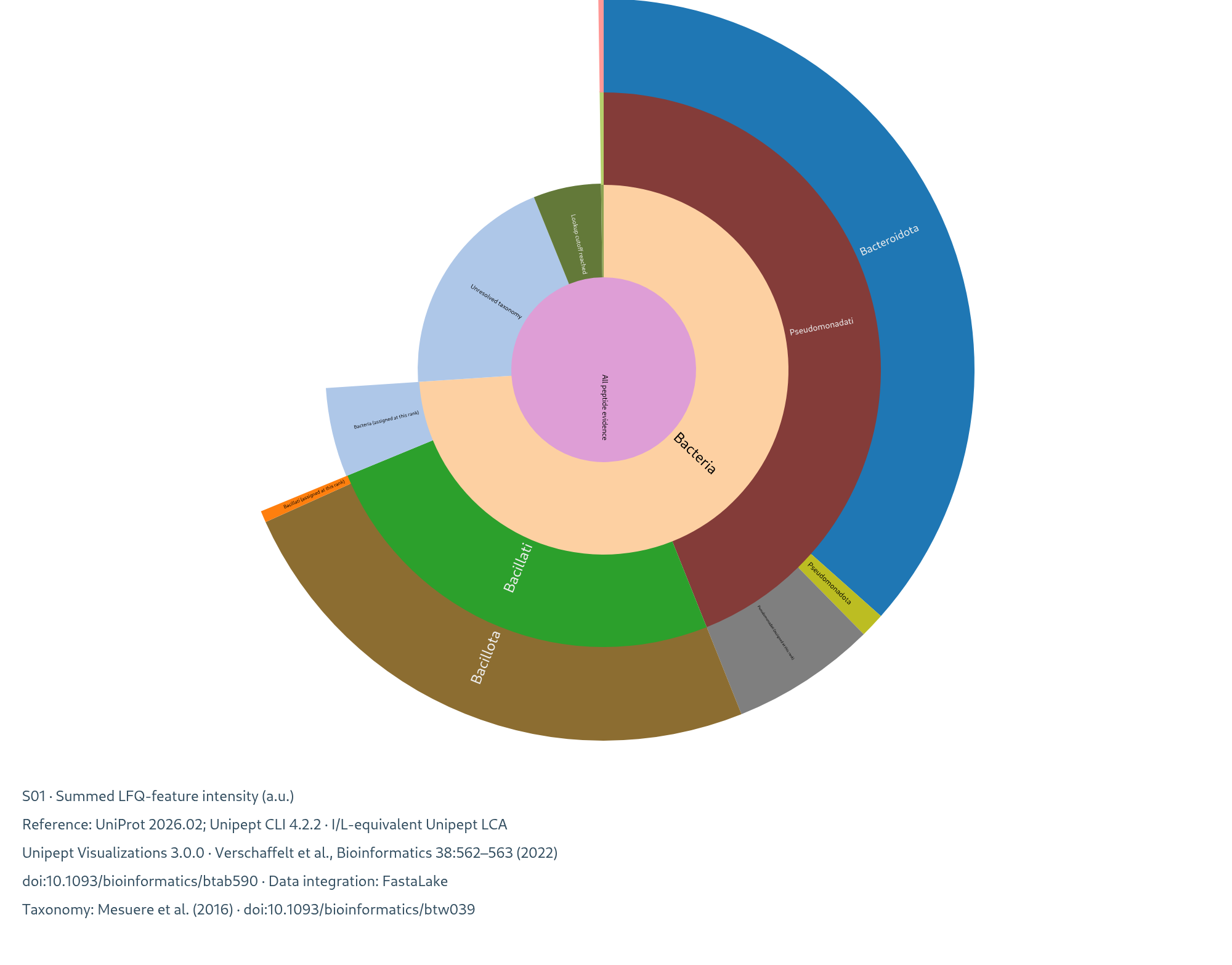

Public CAMPI peptide evidence rendered with Unipept Visualizations

This exported example shows one measured CAMPI acquisition window; the figure retains the tool citations and reference label. Preview provenance.

Run on your own study#

First finish the standard search and study grouping. Here grouped is that completed result folder. Choose a new output directory for each command.

fasta-lake taxonomy prepare --groups grouped --out taxonomy_queries

# Run in an environment with the official Unipept CLI installed.
unipept --version
unipept pept2lca --all --equate --format json \
  --input taxonomy_queries/peptides.txt > unipept.json

fasta-lake taxonomy report --groups grouped --unipept-output unipept.json \
  --database "UniProt RELEASE; Unipept CLI VERSION" --equate-il \
  --out community_report

Replace RELEASE and VERSION with the actual output of unipept --version. The adapter preserves the native file and records this label as user-declared; it cannot recover a database version that the native output does not contain. The tested CLI is 4.2.2 with Node.js 22. See the official CLI for installation and settings. The saved-output reader accepts its full-lineage JSON or CSV. Docker includes the report renderer and demo data; a live query uses the separately installed CLI.

Warning

The CLI contacts its selected server. Its default is the public Unipept service, backed by UniProtKB and NCBI taxonomy. FastaLake itself performs no upload in these commands. Use your institution's chosen service and sharing arrangements for unpublished or sensitive peptide lists.

--equate makes I and L equivalent, matching FastaLake's canonical peptide keys. --all returns the lineage needed for the hierarchy. Standard pept2lca uses Unipept's tryptic reference index: a semi-tryptic or open search in Sage does not turn this into an unrestricted taxonomy search. Inspect unreturned peptides and record that scope when comparing search settings.

Read the plots#

View Meaning
Sunburst / treemap Area represents the selected evidence measure; click to explore ranks
Tree Expandable lineage and supporting evidence; branch placement is not evolutionary distance
Holobiont balance Host, Bacteria, Archaea, other assigned taxa and unresolved evidence, per acquisition
Contaminant-reference overlap Optional exact peptide overlap with a reference you supply

LCA means lowest common ancestor: the most specific shared taxon returned by Unipept for the matches in its reference. A genus assignment stays at genus. “Assigned at this rank” is a plotting leaf that preserves that evidence; it does not invent a species. Cutoff-limited, unreturned and unreported-completeness lookups remain separate unresolved categories in the hierarchy.

Each accepted canonical peptide counts once per acquisition. Intensity sums its positive assigned LFQ features once; this is not directLFQ taxon abundance or organism biomass. The full denominator includes unresolved evidence. Study reporting groups do not become species merely because they have a representative protein.

The default host is NCBI taxon 9606 (human); set --host-taxon-id for your study. Host signal is biological context, not automatically contamination. To inspect a contaminant reference, pass --contaminant-peptides reference_peptides.txt, one unmodified peptide per line. Shared peptide overlap alone cannot establish laboratory contamination. The reference hash is retained.

Saved results and practical limits#

peptide_taxonomy.tsv and holobiont_balance.tsv are the readable source tables. taxonomy.json holds both complete weighted trees and sample measures. COMPLETE.json records source/output hashes, reference label and settings. The original Unipept file and upstream licences are retained. Static PDF/SVG/PNG exports use Matplotlib, included in the Docker analysis environment; core-only installations still produce the interactive report and record skipped static plots.

These are bounded study reports, not a whole-catalogue browser. The reader rejects inputs above 256 MiB or one million rows; it never silently truncates accepted evidence. Large cohorts are best reviewed in scientifically defined subsets on allocated cluster resources.

UHGG and custom references (experimental)#

fasta-lake taxonomy prepare-reference exports a selected FASTA for the native Unipept index builder. Exact sequences, aliases and I/L sequence variants remain distinct. An optional TSV with accession and ncbi_taxon_id provides explicit taxonomy; unmapped proteins use taxon 0. GTDB names are not guessed into NCBI identifiers.

fasta-lake taxonomy prepare-reference --fasta selected.fasta \
  --taxonomy-map protein_taxa.tsv --out unipept_reference

This produces an index input, not a complete custom LCA service. A small native builder/server pilot has checked sequence lookup on 825 UHGG-derived proteins. Whole-UHGG mapping, taxonomic validation and resource profiling remain development work. A selected FastaLake database also narrows the candidate universe: an LCA against it must not be presented as reference-wide specificity.

Credit the tools#

The sunburst, treemap and tree use the MIT-licensed Unipept Visualizations library, with an adapter that preserves directly assigned internal-rank weights. FastaLake gratefully reuses the Unipept team's implementation. FastaLake supplies the study-evidence join, accounting and holobiont summary.

  • Verschaffelt P, Collier J, Botzki A, Martens L, Dawyndt P, Mesuere B. Unipept Visualizations: an interactive visualization library for biological data. Bioinformatics 38:562–563 (2022). doi:10.1093/bioinformatics/btab590.
  • Mesuere B et al. Unipept web services for metaproteomics analysis. Bioinformatics 32:1746–1748 (2016). doi:10.1093/bioinformatics/btw039.

Citations remain visible in the report and downloaded figures. Also cite the reference database release you used. Follow the implementation.
